FLAMEX® WIRE TRAIN BUS 120 Ω (WTB)

Products

FLAMEX WTB 2x0,75²

Nexans ref. 10097859

  • Packaging: Spool (1000m)
  • Sheath colour: Black
  • Nominal outer diameter: 8.2 mm
  • Approximate weight: 87 kg/km
  • Minimum operating temperature: -40 °C



FLAMEX WTB 2x0,75²

Nexans ref. 10211786

  • Packaging: Spool (1000m)
  • Sheath colour: Turquoise
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 92 kg/km
  • Minimum operating temperature: -25 °C



Description

Description

Standards

  • International
    EN 45545-2 (HL3); EN 50264-1

FLAMEX® WTB cables are intended for Train Communication Network to connect the different vehicles. They are designed to improve the protection against electrical disturbances, electromagnetic noises

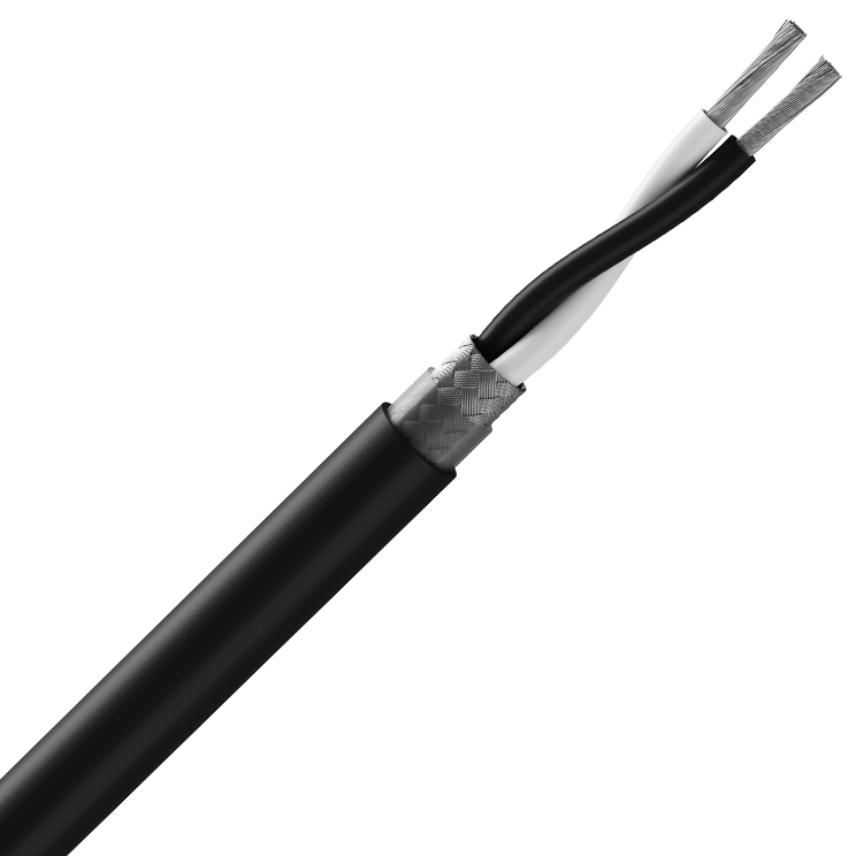

DESIGN

1. Conductor
Stranded tinned copper

2. Insulation
Foam polyethylene

3. Screen
Tinned copper braid
Separator tape

4. Outer sheath
Cross-linked material EM 104 acc. EN 50264-1
Oil, diesel, ozone and UV resistant
Colour: black or turquoise



Example of marking:



FIRE SAFETY

FLAMEX® WTB cables are conform to EN 45545-2 HL3



GUIDE TO USE

  • Bending radius:
    • Static use: 5 x outer cable diameter
    • For installation and occasional movements: 10 x outer cable diameter



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Tin plated copper
Conductor flexibility
Flexible stranded
Construction type
2 x 0.75²
Core identification
Black, White
Outer sheath
Cross-linked compound
Halogen free
EN 60754-1 & EN 60684-2

Usage characteristics

Usage characteristics

Flame retardant
EN 60332-1-2
Fire retardant
IEC 60332-3-25
Smoke density
EN/IEC 61034-2
Gases toxicity
EN 50305-9.2
Electro magnetic interference resistance
Yes
Chemical resistance
Good
