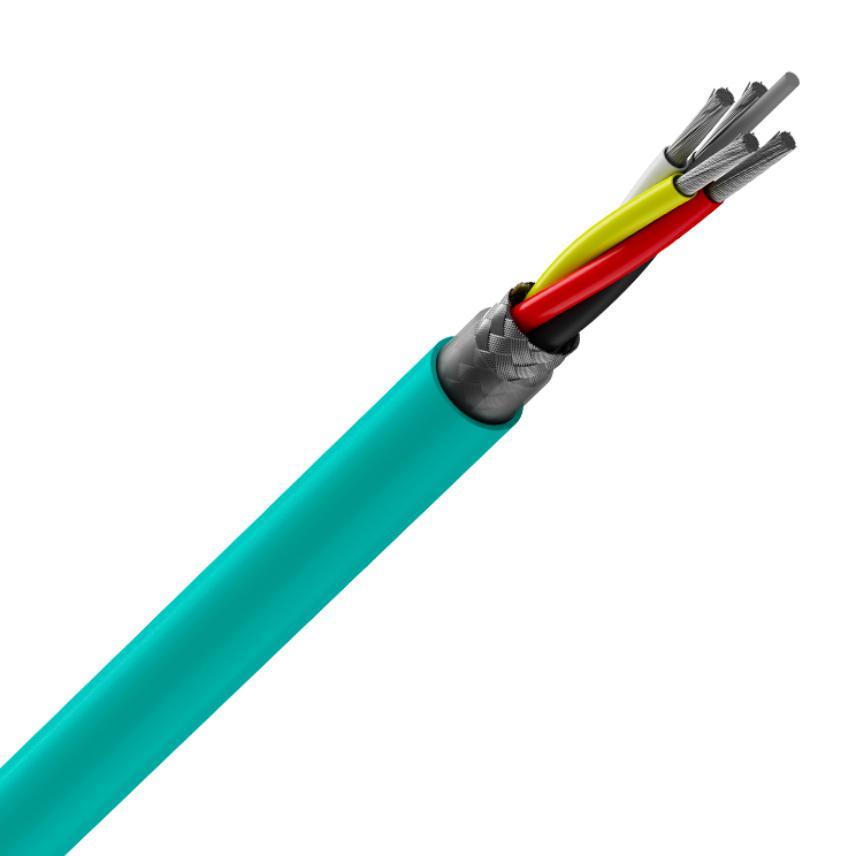

FLAMEX® MULTIFUNCTION VEHICLE BUS (MVB) 120 Ω

Products

2PK596

Nexans ref. 2PK596

  • Packaging: Cut to length (m)
  • Construction type: 2 x 0.50²
  • Core identification: Black, White
  • Nominal outer diameter: 8.0 mm
  • Approximate weight: 84 kg/km
  • Minimum operating temperature: -25 °C



2PF580

Nexans ref. 2PF580

  • Packaging: Cut to length (m)
  • Construction type: 2 x 0.50²
  • Core identification: Black, White
  • Nominal outer diameter: 8.0 mm
  • Approximate weight: 84 kg/km
  • Minimum operating temperature: -40 °C



MVB 4 x 0,50

Nexans ref. 2PE993

  • Packaging: Cut to length (m)
  • Construction type: 4 x 0.50²
  • Core identification: White/Yellow + Red/Black
  • Nominal outer diameter: 8.0 mm
  • Approximate weight: 86 kg/km
  • Minimum operating temperature: -25 °C



2PK697

Nexans ref. 2PK697

  • Packaging: Cut to length (m)
  • Construction type: 4 x 0.50²
  • Core identification: White/Yellow + Red/Black
  • Nominal outer diameter: 8.0 mm
  • Approximate weight: 86 kg/km
  • Minimum operating temperature: -40 °C



45953050

Nexans ref. 45953050

  • Packaging: Cut to length (m)
  • Construction type: 4 x 0.50²
  • Core identification: White/Yellow + Red/Black
  • Nominal outer diameter: 8.0 mm
  • Approximate weight: 90 kg/km
  • Minimum operating temperature: -40 °C



MVB 4 x AWG 22/19

Nexans ref. 45903050

  • Packaging: Cut to length (m)
  • Construction type: 4 x AWG 20/19
  • Core identification: White/Yellow + Red/Black
  • Nominal outer diameter: 7.9 mm
  • Approximate weight: 91 kg/km
  • Minimum operating temperature: -40 °C



Description

Description

Standards

  • International
    EN 45545-2 (HL3)



Nexans develops halogen-free communication cables for higher transmission performances to address emerging applications.

FLAMEX® communication cables are conform to EN 45545-2, easy to pool, quick to connect and compatible with standard connectors, and designed to improve the protection against electrical disturbances, electromagnetic noises. Nexans experience in the design of shielding technology enables us to propose all constructions with high EMC protection. All these features make FLAMEX® cables the best candidate for new built and retrofit works.



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
MVB
Sheath colour
Turquoise
Halogen free
EN 50267-2-1 & EN 60684-2

Usage characteristics

Usage characteristics

Flame retardant
EN 45545-2 (HL3)
Smoke density
EN 45545-2 (HL3)
Electro magnetic interference resistance
Yes
