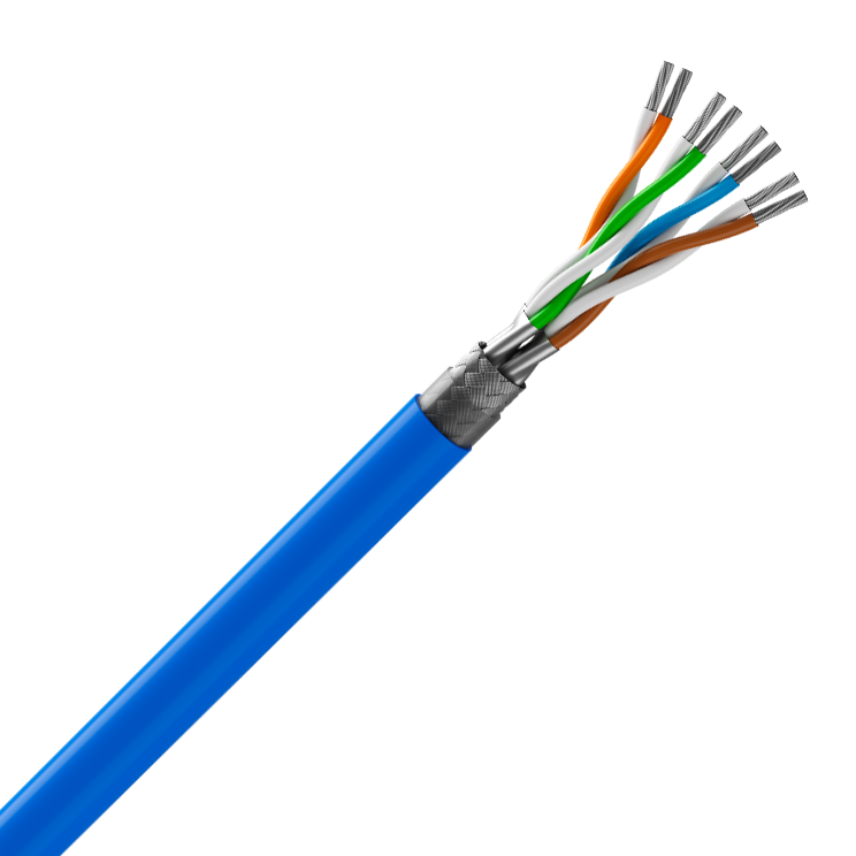

FLAMEX® ETHERNET CABLES 100 Ω

FLAMEX® ETHERNET CABLES 100 Ω

FLAMEX® ETHERNET CABLES 100 Ω

Communication Cables

Read more
Contact us

Products

Actions
Filters

  • products

2PC912

Nexans ref. 2PC912

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 2 x (2 x 0.25²)
  • Sheath colour: Black
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 6.5 mm
  • Approximate weight: 55 kg/km
  • Minimum operating temperature: -25 °C



2PK592

Nexans ref. 2PK592

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 2 x (2 x 0.50²)
  • Sheath colour: Black
  • Core identification: By Identification tapes - Red,Yellow,Blue
  • Nominal outer diameter: 9.7 mm
  • Approximate weight: 120 kg/km
  • Minimum operating temperature: -25 °C



2PI232

Nexans ref. 2PI232

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 2 x (2 x 0.50²)
  • Sheath colour: Black
  • Core identification: By Identification tapes - Red,Yellow,Blue
  • Nominal outer diameter: 9.7 mm
  • Approximate weight: 120 kg/km
  • Minimum operating temperature: -40 °C



2PK319

Nexans ref. 2PK319

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x 0.25²
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 6.7 mm
  • Approximate weight: 65 kg/km
  • Minimum operating temperature: -25 °C



2PK699

Nexans ref. 2PK699

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x 0.25²
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 6.7 mm
  • Approximate weight: 65 kg/km
  • Minimum operating temperature: -40 °C



2PK211

Nexans ref. 2PK211

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x 0.50²
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 96 kg/km
  • Minimum operating temperature: -25 °C



2PK698

Nexans ref. 2PK698

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x 0.50²
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 96 kg/km
  • Minimum operating temperature: -40 °C



Ethenet 4 x AWG 20/19

Nexans ref. 45923010

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 20/19
  • Sheath colour: Black
  • Core identification: D
  • Nominal outer diameter: 7.8 mm
  • Approximate weight: 96 kg/km
  • Minimum operating temperature: -40 °C



Ethernet 4 x AWG 22/19 (0,34²)

Nexans ref. 45993310

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/19 (0,34²)
  • Sheath colour: Black
  • Core identification: C
  • Nominal outer diameter: 6.9 mm
  • Approximate weight: 74 kg/km
  • Minimum operating temperature: -40 °C



Ethernet 4 x AWG 22/19 (0,34²)

Nexans ref. 45994010

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/7 (0,34²)
  • Sheath colour: Black
  • Core identification: C
  • Nominal outer diameter: 7.2 mm
  • Approximate weight: 77 kg/km
  • Minimum operating temperature: -40 °C



2PM022

Nexans ref. 2PM022

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/7 (0,34²)
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 6.5 mm
  • Approximate weight: 62 kg/km
  • Minimum operating temperature: -25 °C



2PG229

Nexans ref. 2PG229

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/7 (0,34²)
  • Sheath colour: Black
  • Core identification: D
  • Nominal outer diameter: 6.5 mm
  • Approximate weight: 62 kg/km
  • Minimum operating temperature: -25 °C



2PM676

Nexans ref. 2PM676

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/7 (0,34²)
  • Sheath colour: Blue
  • Core identification: C
  • Nominal outer diameter: 6.5 mm
  • Approximate weight: 62 kg/km
  • Minimum operating temperature: -40 °C



2PK847

Nexans ref. 2PK847

  • Packaging: Cut to length (m)
  • Type of cable: CAT 5E
  • Construction type: 4 x AWG 22/7 (0,34²)
  • Sheath colour: Black
  • Core identification: D
  • Nominal outer diameter: 6.5 mm
  • Approximate weight: 62 kg/km
  • Minimum operating temperature: -40 °C



2PM577

Nexans ref. 2PM577

  • Packaging: Cut to length (m)
  • Type of cable: CAT 6A
  • Construction type: 4 x (2 x 0.25²)
  • Sheath colour: Blue
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 80 kg/km
  • Minimum operating temperature: -40 °C



2PM578

Nexans ref. 2PM578

  • Packaging: Cut to length (m)
  • Type of cable: CAT 6A
  • Construction type: 4 x (2 x 0.50²)
  • Sheath colour: Blue
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 11.9 mm
  • Approximate weight: 147 kg/km
  • Minimum operating temperature: -40 °C



2PM615

Nexans ref. 2PM615

  • Packaging: Cut to length (m)
  • Type of cable: CAT 7
  • Construction type: 4 x (2 x 0.25²)
  • Sheath colour: Blue
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 82 kg/km
  • Minimum operating temperature: -40 °C



2PM622

Nexans ref. 2PM622

  • Packaging: Cut to length (m)
  • Type of cable: CAT 7
  • Construction type: 4 x (2 x AWG 24/7)
  • Sheath colour: Black
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 8.1 mm
  • Approximate weight: 71 kg/km
  • Minimum operating temperature: -40 °C



2PM697

Nexans ref. 2PM697

  • Packaging: Cut to length (m)
  • Type of cable: CAT 7
  • Construction type: 4 x (2 x AWG 26/7)
  • Sheath colour: Black
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 7.1 mm
  • Approximate weight: 55 kg/km
  • Minimum operating temperature: -40 °C



2PM617

Nexans ref. 2PM617

  • Packaging: Cut to length (m)
  • Type of cable: CAT 7A
  • Construction type: 4 x (2 x 0.25²)
  • Sheath colour: Black
  • Core identification: Red,Yellow,Blue,Black
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 85 kg/km
  • Minimum operating temperature: -40 °C



Description

Description

Standards

  • International
    EN 45545-2 (HL3)



Nexans develops halogen-free communication cables for higher transmission performances to address emerging applications.

FLAMEX® communication cables are conform to EN 45545-2, easy to pool, quick to connect and compatible with standard connectors, and designed to improve the protection against electrical disturbances, electromagnetic noises. Nexans experience in the design of shielding technology enables us to propose all constructions with high EMC protection. All these features make FLAMEX® cables the best candidate for new built and retrofit works.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Halogen free
EN 50267-2-1 & EN 60684-2

Usage characteristics

Usage characteristics

Flame retardant
EN 45545-2 (HL3)
Smoke density
EN 45545-2 (HL3)
Electro magnetic interference resistance
Yes

Resources

Resources

Selling & delivery Information

A: Color coding for pairs
N°1: white + blue
N°2: white + orange
N°3: white + green
N°4: white + brown

B: Color coding for pairs:   N°1: white + blue     N°2: yellow + orange
C: Color coding for quads: N°1: white + blue     N°2: yellow + orange
D: Color coding for quads: N°1: white + yellow  N°2: red + black
