FLAMEX® EN 50306-2

Products

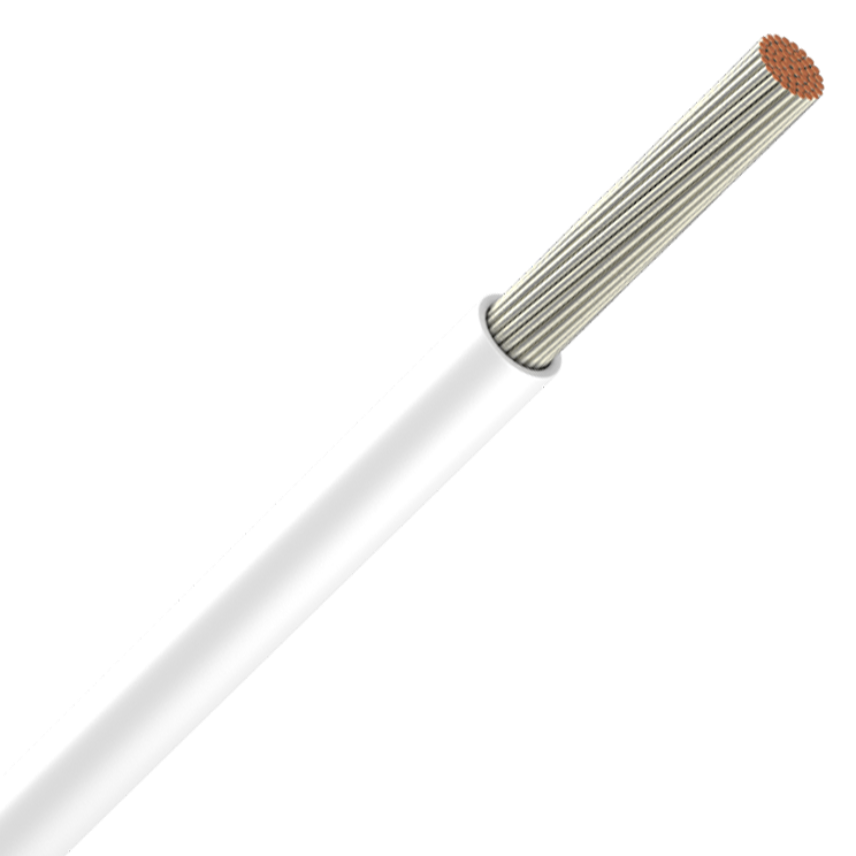

FLAMEX 20 EN 50306-2 1X0.5 -M- WHITE 5KM

Nexans ref. 10097799

  • Stranding element: 19x0,18
  • Conductor cross-section: 0.5 mm²
  • Conductor diameter (mm): 0.95
  • Minimum cable diameter: 1.15 mm
  • Maximum cable diameter: 1.45 mm
  • Approximate weight: 6 kg/km
  • Max. DC resistance of the conductor at 20°C: 40.1 Ohm/km
  • Fire load: 0.006 kWh/m



FLAMEX 20 EN 50306-2 1X0.75-M- WHITE 3KM

Nexans ref. 10128028

  • Stranding element: 19x0.23
  • Conductor cross-section: 0.75 mm²
  • Conductor diameter (mm): 1.15
  • Minimum cable diameter: 1.35 mm
  • Maximum cable diameter: 1.65 mm
  • Approximate weight: 8.5 kg/km
  • Max. DC resistance of the conductor at 20°C: 26.7 Ohm/km
  • Fire load: 0.008 kWh/m



FLAMEX 20 EN 50306-2 1X1.0 -M- WHITE 3KM

Nexans ref. 10097800

  • Stranding element: 19x0.25
  • Conductor cross-section: 1 mm²
  • Conductor diameter (mm): 1.3
  • Minimum cable diameter: 1.45 mm
  • Maximum cable diameter: 1.8 mm
  • Approximate weight: 10.5 kg/km
  • Max. DC resistance of the conductor at 20°C: 20 Ohm/km
  • Fire load: 0.009 kWh/m



FLAMEX 20 EN 50306-2 1X1.5 -M- WHITE 2KM

Nexans ref. 10097801

  • Stranding element: 19x0.25
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter (mm): 1.65
  • Minimum cable diameter: 1.95 mm
  • Maximum cable diameter: 2.3 mm
  • Approximate weight: 16 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.7 Ohm/km
  • Fire load: 0.013 kWh/m



FLAMEX 20 EN 50306-2 1X2.5-M-WHITE 1KM

Nexans ref. 10097802

  • Stranding element: 19x0.40
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter (mm): 2.15
  • Minimum cable diameter: 2.5 mm
  • Maximum cable diameter: 2.85 mm
  • Approximate weight: 26.5 kg/km
  • Max. DC resistance of the conductor at 20°C: 8.21 Ohm/km
  • Fire load: 0.015 kWh/m



Description

Description

Standards

  • International
    EN 45545-2 (HL3); EN 50264-1; EN 50305; EN 50306
  • National
    GOST-R 31565; NFPA 130

Applications

Hook-up wires EN 50306-2

Strictly halogen free, these wires combine the advantages of small size, lightweight, high chemical resistance, high mechanical properties. They are recommended for installation in railway vehicles (locomotives, trains, trolleybusses...).

A 125°C conductor temperature is allowed for a 20,000 hours cumulative working time.

Fire safety according to : EN 45545-2,  DIN 5510-2, NFPA 130, GOST-R 31565



Construction

  1. Conductor

    Flexible stranded tinned copper.

  2. Insulation

    Thin wall insulation. Halogen free cross linked material.



Marking

According to EN 50306 :

EN 50306-2 - 300 V - 1 x cross-section - M - week/year



Colour codes

Insulation colour : white



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Tin plated copper
Halogen free
EN 50267-2-1 & EN 60684-2
Insulation colour
White

Dimensional characteristics

Dimensional characteristics

Stranding (No./mm)
-

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Operating temperature, range
-40 ... 105 °C
Chemical resistance
-
Flame retardant
EN 60332-1-2
Fire retardant
EN 60332-3-24; EN 60332-3-25
Smoke density
EN/IEC 61034-2 & NFF 16101 & EN 45545-2
Gases toxicity
EN 50305-9.2
Bending factor when installed
5 (xD)
Dynamic bending factor
10 (xD)
