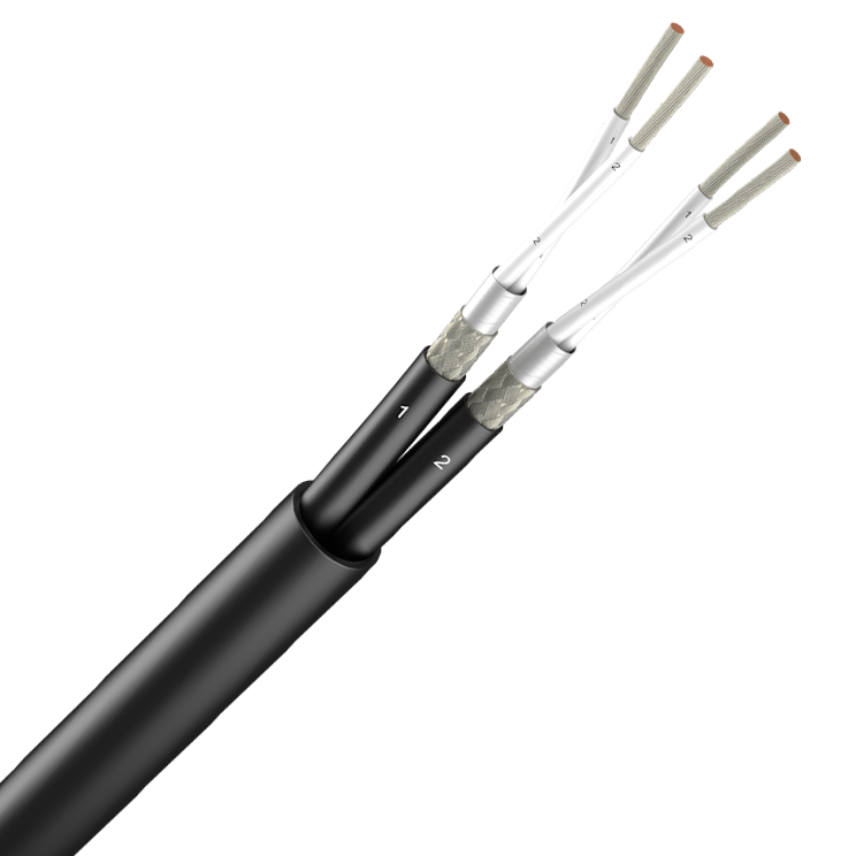

FLAMEX® EN 50306-3 & -4

Products

FLAMEX 20 EN 50306-3 1 x 0.50 MM - S

Nexans ref. 10122694

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 2.3 mm
  • Approximate weight: 14 kg/km
  • Number of cores: 1
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 1 x 0.75 MM - S

Nexans ref. 10162996

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 2.5 mm
  • Approximate weight: 17 kg/km
  • Number of cores: 1
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 1 x 1.00 MM - S

Nexans ref. 10102327

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 2.7 mm
  • Approximate weight: 20 kg/km
  • Number of cores: 1
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 1 x 1.50 MM - S

Nexans ref. 10102330

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 3.1 mm
  • Approximate weight: 28 kg/km
  • Number of cores: 1
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 1 x 2.50 MM - S

Nexans ref. 10116479

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 3.6 mm
  • Approximate weight: 43 kg/km
  • Number of cores: 1
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 2 x 0.50 MM - S

Nexans ref. 10102326

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 3.5 mm
  • Approximate weight: 25 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 2 x 0.75 MM - S

Nexans ref. 10128029

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 3.9 mm
  • Approximate weight: 31 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 2 x 1.00 MM - S

Nexans ref. 10103735

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.2 mm
  • Approximate weight: 37 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 2 x 1.50 MM - S

Nexans ref. 10102331

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 5.1 mm
  • Approximate weight: 55 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 2 x 2.50 MM - S

Nexans ref. 10128033

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 6.4 mm
  • Approximate weight: 87 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 3 x 0.50 MM - S

Nexans ref. 10103310

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 3.7 mm
  • Approximate weight: 33 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 3 x 0.75 MM - S

Nexans ref. 10128030

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.0 mm
  • Approximate weight: 43 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 3 x 1.00 MM - S

Nexans ref. 10102328

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.5 mm
  • Approximate weight: 52 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 3 x 1.50 MM - S

Nexans ref. 10132982

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 5.4 mm
  • Approximate weight: 75 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 3 x 2.50 MM - S

Nexans ref. 10163917

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 6.8 mm
  • Approximate weight: 124 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 4 x 0.50 MM - S

Nexans ref. 10119424

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.0 mm
  • Approximate weight: 43 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 4 x 0.75 MM - S

Nexans ref. 10132981

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.5 mm
  • Approximate weight: 56 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 4 x 1.00 MM - S

Nexans ref. 10102329

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 5.0 mm
  • Approximate weight: 65 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 4 x 1.50 MM - S

Nexans ref. 10183275

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 100 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 4 x 2.50 MM - S

Nexans ref. 10122695

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.5 mm
  • Approximate weight: 158 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-3 6x0.50 MM

Nexans ref. 2PI378

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 75 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 6x0.75 MM

Nexans ref. 2PJ842

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.1 mm
  • Approximate weight: 92 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 92 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 6x1.00 MM

Nexans ref. 2PM688

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.3 mm
  • Approximate weight: 104 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 94 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 6x1.50 MM

Nexans ref. 2PK766

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.3 mm
  • Approximate weight: 154 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 96 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 8x0.50 MM

Nexans ref. 2PI811

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 6.1 mm
  • Approximate weight: 88 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 91 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 8x0.75 MM

Nexans ref. 2PI361

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 7.3 mm
  • Approximate weight: 119 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 93 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 8x1.00 MM

Nexans ref. 2PM706

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 7.5 mm
  • Approximate weight: 125 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 95 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-3 8x1.50 MM

Nexans ref. 2PM156

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 8.5 mm
  • Approximate weight: 215 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 97 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 13 x 0.50 - MM

Nexans ref. 2PH320

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 8.3 mm
  • Approximate weight: 132 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 19 x 0.50 - MM

Nexans ref. 2PH321

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 9.0 mm
  • Approximate weight: 172 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 2 x 0.50 - MM

Nexans ref. 2PH316

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.9 mm
  • Approximate weight: 40 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 3 x 0.50 - MM

Nexans ref. 2PH317

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.1 mm
  • Approximate weight: 48 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 37 x 0.50 - MM

Nexans ref. 2PH322

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 12.3 mm
  • Approximate weight: 311 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 4 x 0.50 - MM

Nexans ref. 10137780

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 56 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 7 x 0.50 - MM

Nexans ref. 2PH319

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 6.3 mm
  • Approximate weight: 80 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 13 x 0.75 - MM

Nexans ref. 2PH327

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 9.1 mm
  • Approximate weight: 173 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 13 x 1.00 - MM

Nexans ref. 10196679

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 9.7 mm
  • Approximate weight: 200 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 13 x 1.50 - MM

Nexans ref. 10179943

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 11.7 mm
  • Approximate weight: 297 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 13 x 2.50 - MM

Nexans ref. 2PH339

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 13.3 mm
  • Approximate weight: 454 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 19 x 0.75 - MM

Nexans ref. 2PH328

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 10.0 mm
  • Approximate weight: 229 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 19 x 1.00 - MM

Nexans ref. 2PG970

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 10.7 mm
  • Approximate weight: 263 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 19 x 1.50 - MM

Nexans ref. 10209627

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 13.0 mm
  • Approximate weight: 405 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 2 x 0.75 - MM

Nexans ref. 10133066

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 5.3 mm
  • Approximate weight: 48 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 2 x 1.00 - MM

Nexans ref. 10174879

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 5.6 mm
  • Approximate weight: 53 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 2 x 1.50 - MM

Nexans ref. 2PH334

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.3 mm
  • Approximate weight: 70 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 2 x 2.50 - MM

Nexans ref. 2PH336

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.7 mm
  • Approximate weight: 105 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 3 x 0.75 - MM

Nexans ref. 2PH324

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 58 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 3 x 1.00 - MM

Nexans ref. 10147700

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 5.85 mm
  • Approximate weight: 65 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 3 x 1.50 - MM

Nexans ref. 2PH335

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.6 mm
  • Approximate weight: 89 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 3 x 2.50 - MM

Nexans ref. 2PH337

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.1 mm
  • Approximate weight: 136 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 37 x 0.75 - MM

Nexans ref. 2PH329

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 13.2 mm
  • Approximate weight: 409 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 37 x 1.00 - MM

Nexans ref. 10184734

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 14.0 mm
  • Approximate weight: 473 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 37 x 1.50 - MM

Nexans ref. 10122698

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 17.2 mm
  • Approximate weight: 734 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 4 x 0.75 - MM

Nexans ref. 2PH325

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 69 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 4 x 1.00 - MM

Nexans ref. 10145456

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.3 mm
  • Approximate weight: 79 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 4 x 1.50 - MM

Nexans ref. 10197106

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.4 mm
  • Approximate weight: 110 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 4 x 2.50 - MM

Nexans ref. 2PG974

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.8 mm
  • Approximate weight: 170 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 48 x 0.75 - MM

Nexans ref. 2PH330

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 14.8 mm
  • Approximate weight: 518 kg/km
  • Number of cores: 48
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 7 x 0.75 - MM

Nexans ref. 10147701

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.9 mm
  • Approximate weight: 102 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 7 x 1.00 - MM

Nexans ref. 10147814

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 7.3 mm
  • Approximate weight: 118 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 7 x 1.50 - MM

Nexans ref. 10197107

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 8.6 mm
  • Approximate weight: 170 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1E 7 x 2.50 - MM

Nexans ref. 2PH338

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 9.7 mm
  • Approximate weight: 257 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 13 x 0.50 - MM

Nexans ref. 2PH307

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 7.3 mm
  • Approximate weight: 113 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 19 x 0.50 - MM

Nexans ref. 2PH308

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 8.1 mm
  • Approximate weight: 151 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 2 x 0.50 - MM

Nexans ref. 10122742

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 3.55 mm
  • Approximate weight: 24 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 3 x 0.50 - MM

Nexans ref. 10181977

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 3.75 mm
  • Approximate weight: 30 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 37 x 0.50 - MM

Nexans ref. 2PH309

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 10.8 mm
  • Approximate weight: 273 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 4 x 0.50 - MM

Nexans ref. 10122696

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.1 mm
  • Approximate weight: 37 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 7 x 0.50 - MM

Nexans ref. 10206315

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.9 mm
  • Approximate weight: 59 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 13 x 0.75 - MM

Nexans ref. 10174874

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 8.2 mm
  • Approximate weight: 152 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 13 x 1.00 - MM

Nexans ref. 10205984

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 8.7 mm
  • Approximate weight: 175 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 13 x 1.50 - MM

Nexans ref. 2PG707

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 10.7 mm
  • Approximate weight: 270 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 13 x 2.50 - MM

Nexans ref. 2PG714

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 12.8 mm
  • Approximate weight: 435 kg/km
  • Number of cores: 13
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 19 x 0.75 - MM

Nexans ref. 2PH312

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 9.0 mm
  • Approximate weight: 205 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 19 x 1.00 - MM

Nexans ref. 10122697

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 9.8 mm
  • Approximate weight: 244 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 19 x 1.50 - MM

Nexans ref. 2PG708

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 12.0 mm
  • Approximate weight: 378 kg/km
  • Number of cores: 19
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 2 x 0.75 - MM

Nexans ref. 10122955

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.0 mm
  • Approximate weight: 30 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 2 x 1.00 - MM

Nexans ref. 10098365

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.3 mm
  • Approximate weight: 35 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 2 x 1.50 - MM

Nexans ref. 10102324

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 5.0 mm
  • Approximate weight: 49 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 2 x 2.50 - MM

Nexans ref. 10122928

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 6.7 mm
  • Approximate weight: 86 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 3 x 0.75 - MM

Nexans ref. 10122956

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.2 mm
  • Approximate weight: 40 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 3 x 1.00 - MM

Nexans ref. 10189566

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.6 mm
  • Approximate weight: 46 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 3 x 1.50 - MM

Nexans ref. 10122958

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 5.3 mm
  • Approximate weight: 67 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 3 x 2.50 - MM

Nexans ref. 10140697

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.7 mm
  • Approximate weight: 125 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 37 x 0.75 - MM

Nexans ref. 2PH313

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 12.2 mm
  • Approximate weight: 376 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 37 x 1.00 - MM

Nexans ref. 2PH315

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 13.3 mm
  • Approximate weight: 441 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 37 x 1.50 - MM

Nexans ref. 2PG709

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 16.2 mm
  • Approximate weight: 715 kg/km
  • Number of cores: 37
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 4 x 0.75 - MM

Nexans ref. 10122957

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.6 mm
  • Approximate weight: 50 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 4 x 1.00 - MM

Nexans ref. 10190806

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.9 mm
  • Approximate weight: 58 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 4 x 1.50 - MM

Nexans ref. 10102325

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 85 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 4 x 2.50 - MM

Nexans ref. 2PG712

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.9 mm
  • Approximate weight: 150 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 48 x 0.75 - MM

Nexans ref. 2PH314

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 13.9 mm
  • Approximate weight: 480 kg/km
  • Number of cores: 48
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 7 x 0.75 - MM

Nexans ref. 10141411

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 79 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 7 x 1.00 - MM

Nexans ref. 10140695

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 93 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 7 x 1.50 - MM

Nexans ref. 2PG706

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.7 mm
  • Approximate weight: 149 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 1P 7 x 2.50 - MM

Nexans ref. 2PG713

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.7 mm
  • Approximate weight: 230 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 3E 2 x 0.50 MM - S

Nexans ref. 10124282

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 50 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 2 x 0.75 MM - S

Nexans ref. 10136915

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 5.9 mm
  • Approximate weight: 59 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 2 x 1.00 MM - S

Nexans ref. 10136329

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.2 mm
  • Approximate weight: 65 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 2 x 1.50 MM - S

Nexans ref. 10136919

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.1 mm
  • Approximate weight: 86 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 2 x 2.50 MM - S

Nexans ref. 10133833

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.3 mm
  • Approximate weight: 124 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 3 x 0.50 MM - S

Nexans ref. 10145847

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.7 mm
  • Approximate weight: 59 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 3 x 0.75 MM - S

Nexans ref. 10174880

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.2 mm
  • Approximate weight: 70 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 3 x 1.00 MM - S

Nexans ref. 10145457

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.5 mm
  • Approximate weight: 81 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 3 x 1.50 MM - S

Nexans ref. 10140269

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.4 mm
  • Approximate weight: 107 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 3 x 2.50 MM - S

Nexans ref. 2PH342

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.6 mm
  • Approximate weight: 156 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 4 x 0.50 MM - S

Nexans ref. 10136914

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 6.1 mm
  • Approximate weight: 70 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 4 x 0.75 MM - S

Nexans ref. 10136916

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.5 mm
  • Approximate weight: 86 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 4 x 1.00 MM - S

Nexans ref. 10136917

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.9 mm
  • Approximate weight: 95 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 4 x 1.50 MM - S

Nexans ref. 10136920

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 8.0 mm
  • Approximate weight: 135 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 4 x 2.50 MM - S

Nexans ref. 10140694

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 9.4 mm
  • Approximate weight: 198 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 6 x 0.50 MM - S

Nexans ref. 2PG846

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 6.9 mm
  • Approximate weight: 94 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 6 x 0.75 MM - S

Nexans ref. 2PH340

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 7.5 mm
  • Approximate weight: 115 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 6 x 1.00 MM - S

Nexans ref. 10193794

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 8.0 mm
  • Approximate weight: 140 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 6 x 1.50 MM - S

Nexans ref. 2PG858

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 9.2 mm
  • Approximate weight: 190 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 8 x 0.50 MM - S

Nexans ref. 10145848

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 7.5 mm
  • Approximate weight: 110 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 8 x 0.75 MM - S

Nexans ref. 10209999

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 8.2 mm
  • Approximate weight: 143 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 8 x 1.00 MM - S

Nexans ref. 2PG854

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 8.6 mm
  • Approximate weight: 165 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3E 8 x 1.50 MM - S

Nexans ref. 10122700

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 10.2 mm
  • Approximate weight: 226 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 12 x 0.75 MM - S

Nexans ref. 10100639

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 8.4 mm
  • Approximate weight: 165 kg/km
  • Number of cores: 12
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 12 x 1.50 MM - S

Nexans ref. 10101869

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 10.6 mm
  • Approximate weight: 280 kg/km
  • Number of cores: 12
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 2 x 0.50 MM - S

Nexans ref. 10100553

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.1 mm
  • Approximate weight: 32 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 2 x 0.75 MM - S

Nexans ref. 10100703

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.5 mm
  • Approximate weight: 39 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 2 x 1.00 MM - S

Nexans ref. 10097829

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 4.7 mm
  • Approximate weight: 44 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 2 x 1.50 MM - S

Nexans ref. 10101868

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 5.7 mm
  • Approximate weight: 64 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 2 x 2.50 MM - S

Nexans ref. 10140270

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.3 mm
  • Approximate weight: 105 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 3 x 0.50 MM - S

Nexans ref. 10097828

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.3 mm
  • Approximate weight: 40 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 3 x 0.75 MM - S

Nexans ref. 10118167

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 4.7 mm
  • Approximate weight: 49 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 3 x 1.00 MM - S

Nexans ref. 10097830

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 5.1 mm
  • Approximate weight: 59 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 3 x 1.50 MM - S

Nexans ref. 10147567

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 84 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 3 x 2.50 MM - S

Nexans ref. 10101870

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 7.7 mm
  • Approximate weight: 140 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 4 x 0.50 MM - S

Nexans ref. 10107387

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 4.7 mm
  • Approximate weight: 50 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 4 x 0.75 MM - S

Nexans ref. 10127311

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 5.2 mm
  • Approximate weight: 64 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 4 x 1.00 MM - S

Nexans ref. 10097831

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 73 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 4 x 1.50 MM - S

Nexans ref. 10100640

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 6.6 mm
  • Approximate weight: 108 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 4 x 2.50 MM - S

Nexans ref. 10125910

  • Packaging: Cut to length (m)
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 8.4 mm
  • Approximate weight: 180 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 6 x 0.50 MM - S

Nexans ref. 10101866

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 5.5 mm
  • Approximate weight: 70 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 6 x 0.75 MM - S

Nexans ref. 10101867

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.1 mm
  • Approximate weight: 90 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 6 x 1.00 MM - S

Nexans ref. 10122699

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 6.6 mm
  • Approximate weight: 111 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 6 x 1.50 MM - S

Nexans ref. 10184926

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 8.3 mm
  • Approximate weight: 167 kg/km
  • Number of cores: 6
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 8 x 0.50 MM - S

Nexans ref. 10178560

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 6.0 mm
  • Approximate weight: 84 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 8 x 0.75 MM - S

Nexans ref. 10100638

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 6.6 mm
  • Approximate weight: 112 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 3P 8 x 1.50 MM - S

Nexans ref. 10126216

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 7.7 mm
  • Approximate weight: 139 kg/km
  • Number of cores: 8
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: Yes



FLAMEX 20 EN 50306-4 5E 2 x 2 x0.50 MMM

Nexans ref. 2PH343

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 10.1 mm
  • Approximate weight: 138 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 2 x 2 x0.75 MMM

Nexans ref. 2PH347

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 10.9 mm
  • Approximate weight: 162 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 2 x 2 x1.00 MMM

Nexans ref. 2PH351

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 11.3 mm
  • Approximate weight: 174 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 2 x 2 x1.50 MMM

Nexans ref. 10114565

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 13.3 mm
  • Approximate weight: 246 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 3 x 2 x0.50 MMM

Nexans ref. 10191108

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 10.8 mm
  • Approximate weight: 170 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 3 x 2 x0.75 MMM

Nexans ref. 2PH348

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 11.6 mm
  • Approximate weight: 201 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 3 x 2 x1.00 MMM

Nexans ref. 10196678

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 12.0 mm
  • Approximate weight: 215 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 3 x 2 x1.50 MMM

Nexans ref. 10136921

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 14.0 mm
  • Approximate weight: 300 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 4 x 2 x0.50 MMM

Nexans ref. 10136320

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 11.8 mm
  • Approximate weight: 192 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 4 x 2 x0.75 MMM

Nexans ref. 2PH349

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 12.8 mm
  • Approximate weight: 231 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 4 x 2 x1.00 MMM

Nexans ref. 2PH353

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 13.2 mm
  • Approximate weight: 245 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 4 x 2 x1.50 MMM

Nexans ref. 10205948

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 15.5 mm
  • Approximate weight: 349 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 7 x 2 x0.50 MMM

Nexans ref. 2PH346

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 13.9 mm
  • Approximate weight: 284 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 7 x 2 x0.75 MMM

Nexans ref. 2PH350

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 15.1 mm
  • Approximate weight: 346 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 7 x 2 x1.00 MMM

Nexans ref. 10184735

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 15.7 mm
  • Approximate weight: 374 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5E 7 x 2 x1.50 MMM

Nexans ref. 10122702

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 18.7 mm
  • Approximate weight: 550 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 2 x 2 x0.50 MMM

Nexans ref. 10122701

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 9.0 mm
  • Approximate weight: 110 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 2 x 2 x0.75 MMM

Nexans ref. 2PH482

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 9.8 mm
  • Approximate weight: 132 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 2 x 2 x1.00 MMM

Nexans ref. 2PH486

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 10.2 mm
  • Approximate weight: 142 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 2 x 2 x1.50 MMM

Nexans ref. 10114550

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 12.2 mm
  • Approximate weight: 208 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 3 x 2 x0.50 MMM

Nexans ref. 2PH479

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 9.6 mm
  • Approximate weight: 137 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 3 x 2 x0.75 MMM

Nexans ref. 2PH483

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 10.5 mm
  • Approximate weight: 169 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 3 x 2 x1.00 MMM

Nexans ref. 2PH487

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 10.9 mm
  • Approximate weight: 183 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 3 x 2 x1.50 MMM

Nexans ref. 2PH491

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 13.1 mm
  • Approximate weight: 268 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 4 x 2 x0.50 MMM

Nexans ref. 10143433

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 10.7 mm
  • Approximate weight: 159 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 4 x 2 x0.75 MMM

Nexans ref. 2PH484

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 11.6 mm
  • Approximate weight: 192 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 4 x 2 x1.00 MMM

Nexans ref. 2PH488

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 12.1 mm
  • Approximate weight: 211 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 4 x 2 x1.50 MMM

Nexans ref. 2PH492

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 14.3 mm
  • Approximate weight: 305 kg/km
  • Number of cores: 4
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 7 x 2 x0.50 MMM

Nexans ref. 2PH481

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 13.0 mm
  • Approximate weight: 251 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 7 x 2 x0.75 MMM

Nexans ref. 2PH485

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 14.0 mm
  • Approximate weight: 303 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 7 x 2 x1.00 MMM

Nexans ref. 2PH489

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 14.6 mm
  • Approximate weight: 353 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 5P 7 x 2 x1.50 MMM

Nexans ref. 2PH493

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 17.6 mm
  • Approximate weight: 514 kg/km
  • Number of cores: 7
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 2 x 2 x0.50 MM - S

Nexans ref. 2PG861

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 7.2 mm
  • Approximate weight: 85 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 2 x 2 x0.75 MM - S

Nexans ref. 2PG864

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 8.0 mm
  • Approximate weight: 110 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 2 x 2 x1.00 MM - S

Nexans ref. 2PG865

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1 mm²
  • Minimum outer diameter: 8.6 mm
  • Approximate weight: 125 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 2 x 2 x1.50 MM - S

Nexans ref. 10136922

  • Packaging: Cut to length (m)
  • Conductor cross-section: 1.5 mm²
  • Minimum outer diameter: 9.7 mm
  • Approximate weight: 159 kg/km
  • Number of cores: 2
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 3 x 2 x0.50 MM - S

Nexans ref. 2PG862

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.5 mm²
  • Minimum outer diameter: 7.5 mm
  • Approximate weight: 100 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No



FLAMEX 20 EN 50306-4 E 3 x 2 x0.75 MM - S

Nexans ref. 2PH358

  • Packaging: Cut to length (m)
  • Conductor cross-section: 0.75 mm²
  • Minimum outer diameter: 8.35 mm
  • Approximate weight: 128 kg/km
  • Number of cores: 3
  • Operating temperature, range: -40 - 90 °C
  • Electro magnetic interference resistance: No
